Reporting Issues to RtBrick

Accessing RtBrick support is done via the RtBrick webpage, in the support section:
https://www.rtbrick.com/support/contact-our-experts-now. To be able to open a support case, you need an active business contract, and a support account at RtBrick.

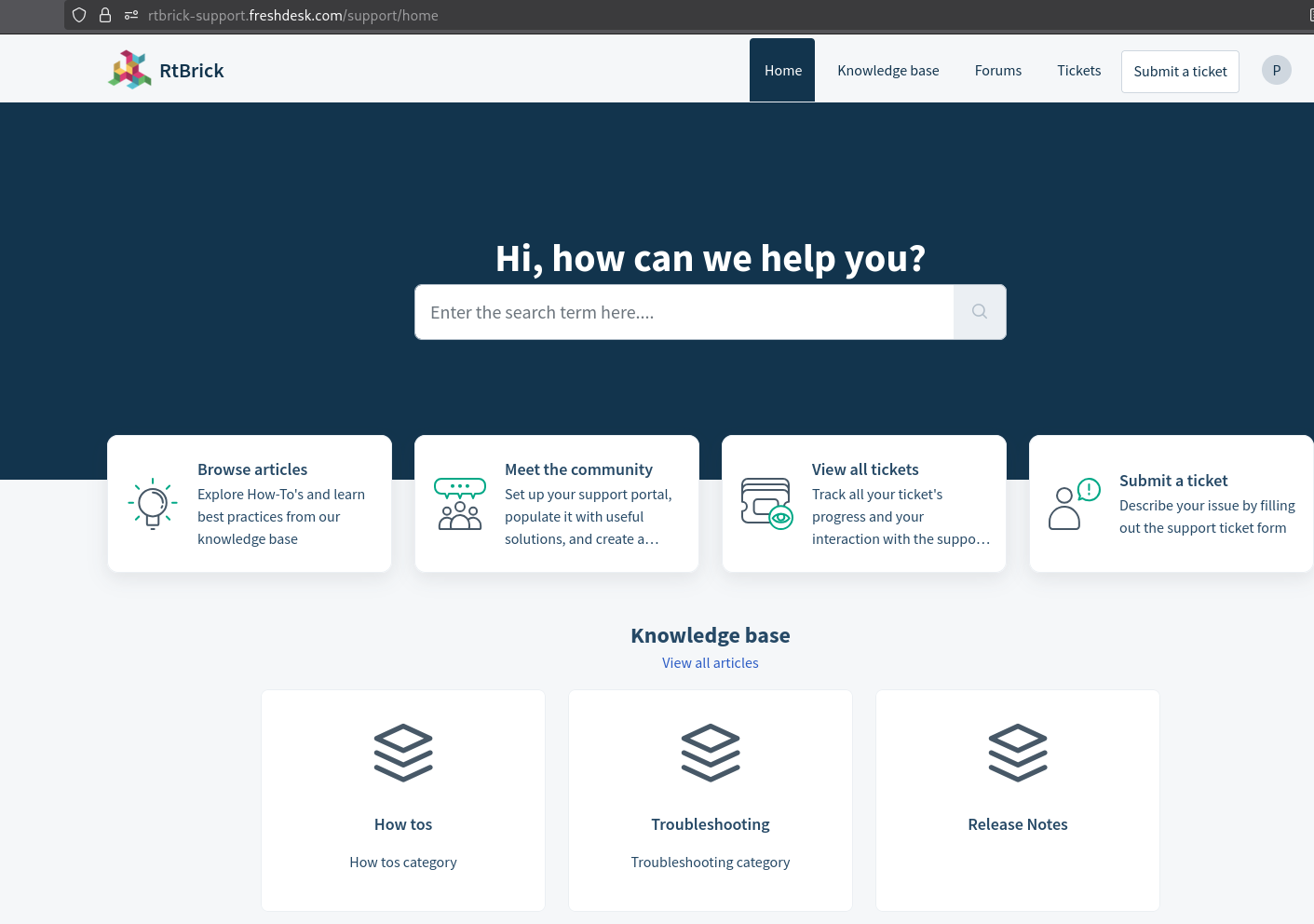

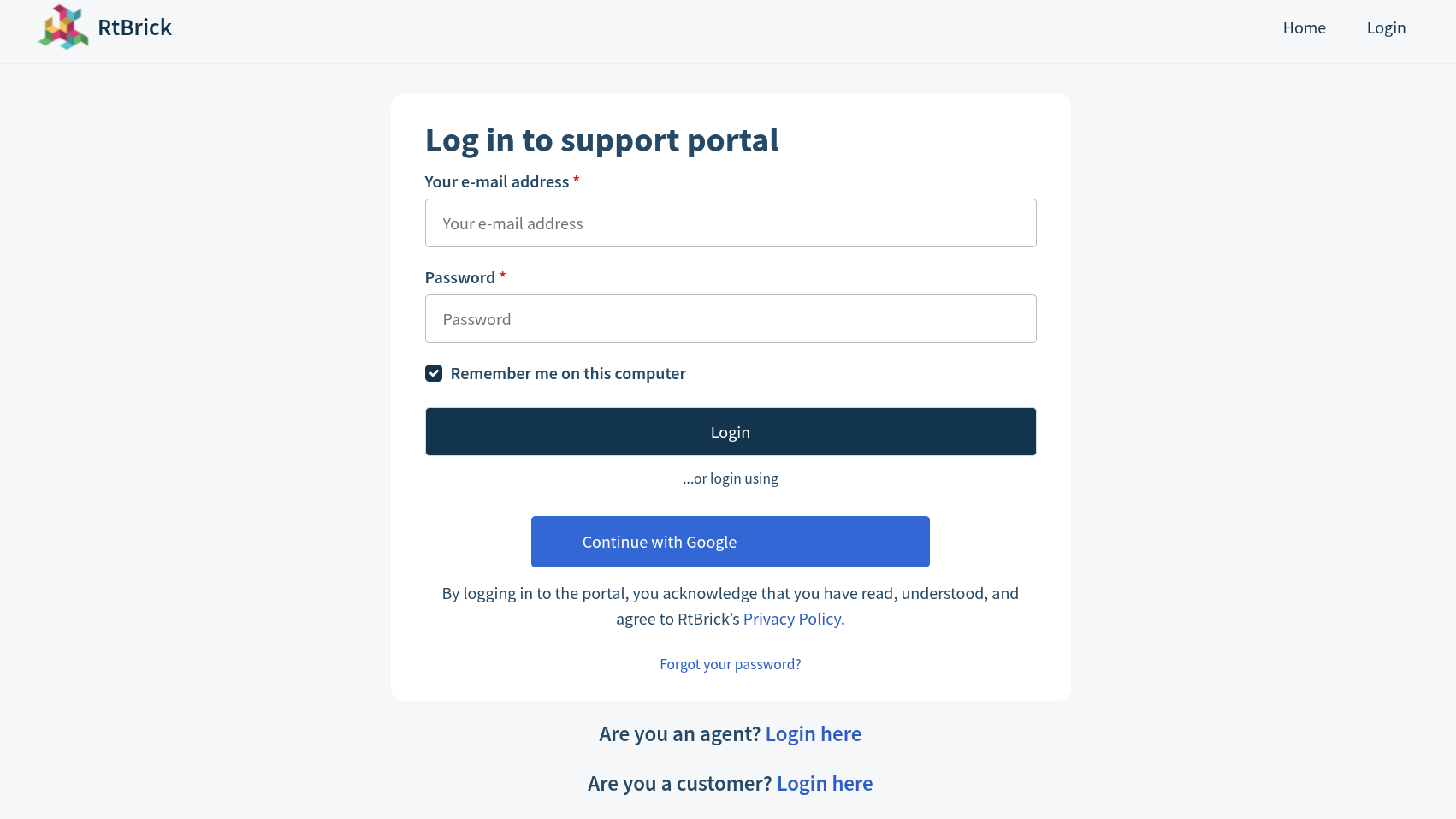

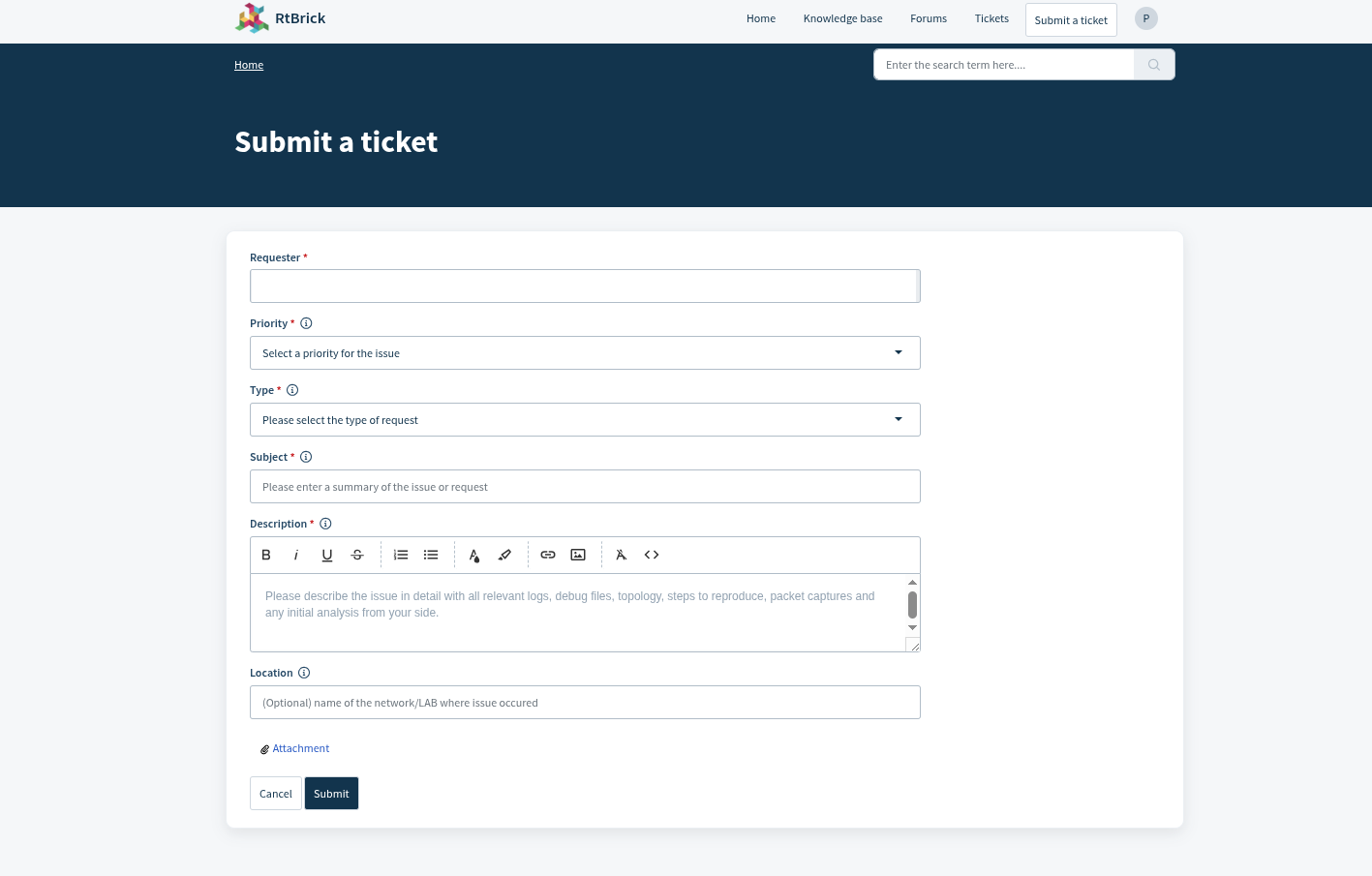

On the https://www.rtbrick.com/support/contact-our-experts-now page, click the customer support portal link; you will be redirected to the Customer Portal. In the support page that appears, if you don’t have any cases already opened, you will be presented with a form to open a case; on the righthand side you will have quick links to documentation and products. Note that fields marked with an asterisk are mandatory. After filling in all the information, press the submit button on the bottom of the page.

Opening a case

To help solving the case in a timely manner, basic information must be given in order to pinpoint the issue:

If the issue was encountered on a virtual installation or on a physical box
The RBFS image role (spine/access leaf), the version, and the patch version
Any logs and/or comments: for logs you can use the "Add attachment" link in the support page, and comments can be posted after the case is submitted.

Debugger Information Utility Program

In RBFS, every daemon maintains a set of tables containing data specific to its functions. These daemon-specific tables help in a deeper analysis of issues, allowing for targeted debugging based on the specific functions and responsibilities of each daemon.

RBFS implements a debugger information utility program. This utility allows you to retrieve table information from all or a few specific modules. This information also includes log files, diagnostic messages, CPU and memory states, and current and previous configurations. This utility program can be run whenever an issue is encountered with RBFS and needs to be reported to customer support.

The utility program collects data and converts this into a JSON file format. Each collected file is named after the respective table name or data it contains and is stored in a directory named with the corresponding timestamp. This directory is compressed into a zip file and saved in the "/var/crash/debug_info" directory.

You can then attach and send this zipped file to the RtBrick support team. This information is valuable for troubleshooting many types of network issues, as it allows the support team to analyze the router’s state and configurations without directly accessing the router.

When users, who do not have the necessary permissions, attempt to access data from a table by executing the command, they will not be able to view the retrieved data.

How to Retrieve Data Using the Utility Program

To retrieve data, you must run the collect debug-information command in the debug mode to retrieve the data.

The following is the command syntax:

collect debug-information <option>

Attribute	Description
all	This option retrieves data from all daemons.
<module-name>	This option allows you to specify the daemon/module name so that the utility retrieves data only for that specific module/daemon.

Attribute

Description

all

This option retrieves data from all daemons.

<module-name>

This option allows you to specify the daemon/module name so that the utility retrieves data only for that specific module/daemon.

To collect debug information for all modules, use the following command:

collect debug-information all

After executing the command, the data collection process takes a few seconds or minutes to complete.

The following example command execution shows the date and time in sequential order as each daemon’s data is fetched. It also shows the total time taken to complete the collection process at the end

debug info

Periodic Data Collection

This utility program can also help in collecting system states and other information at scheduled intervals. This periodically collected information helps in understanding the system state before an issue occurs, which is useful in many scenarios.

The utility can be configured to automatically run at predefined intervals to collect data. After each run, it saves reports that can be used for further analysis and troubleshooting. You can define the intervals for periodic data collection to suit your needs.

The system employs Cron Job functionality to collect this periodic debugging information. A Cron Job is a scheduled task that runs automatically at specified intervals.

You can configure the Cron Job functionality to enable periodic data collection.

Setting Up Cron Job

You can specify the data collection interval, limit the number of files, and initiate the Cron job function.

Specify the Interval:

Define how frequently the system should collect debug information. The interval is specified in hours. The default interval for running the utility is 12 hours. Use the command:

set debug-information collector interval <interval>

Specify the File Limit:

Specify the maximum number of files to be stored for such runs. Once the limit is reached, the system will start overwriting the oldest files and this process continues. The default maximum number of files is 10. Use the command:

set debug-information collector max-files <max_files>

Stopping the Cron Job Function

You can use the following delete form of the command to halt the ongoing Cron Job process.

delete debug-information collector
