Subscriber Management Operational Commands
Show Commands
The following commands are served by subscriber daemon and are applicable for all kinds of subscribers like PPPoE, L2TP or IPoE.
Subscribers
The term subscriber describes an access user or session from a higher level decoupled from underlying protocols like PPPoE or IPoE. Subscribers in RBFS can be managed locally or remote via RADIUS. Each subscriber is uniquely identified by a 64bit number called subscriber-id.
Subscriber States
A good starting point for troubleshooting subscriber services is to verify the status of the subscriber sessions. The state ESTABLISHED means that the session is fully operational.
supervisor@leaf1: op> show subscriber Subscriber-Id Interface VLAN Type State 72339069014638600 ifp-0/0/1 1:1 PPPoE ESTABLISHED 72339069014638601 ifp-0/0/1 1:2 PPPoE ESTABLISHED 72339069014638602 ifp-0/0/1 1:3 PPPoE ESTABLISHED 72339069014638603 ifp-0/0/3 2000:7 L2TP ESTABLISHED
Alternative use show subscriber detail which shows further details like username, Agent-Remote-Id (aka Line-Id) or Agent-Circuit-Id if screen width is large enough to print all those information.

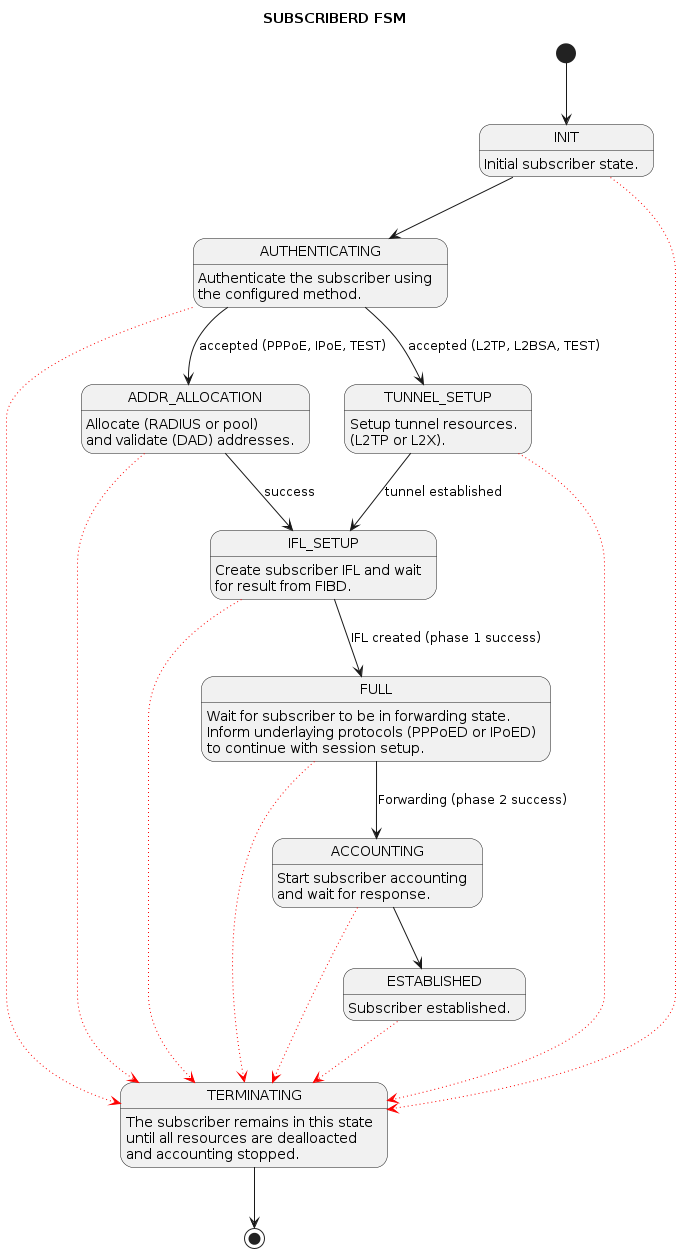

The meaning of the subscriber state is shown in the following table and diagram.
| State | Description |
|---|---|
|
Initial subscriber state. |
|
Authenticate the subscriber using the configured method. |
|
Allocate (RADIUS or pool) and validate (DAD) addresses. |
|
Setup tunnel resources (L2TP or L2X). |
|
Create subscriber IFL with corresponding QoS resources. |
|
Wait for subscriber to be in forwarding state. Inform underlying protocols (PPPoED or IPoED) to continue with session setup. |
|
Start subscriber accounting and wait for response. |
|
The subscriber becomes ESTABLISHED after response to RADIUS Accounting-Request-Start if RADIUS accounting is enabled otherwise immediately after FULL. |
|
The subscriber remains in this state until all resources are freed and accounting stopped. This means that subscriber remain in this state until response to RADIUS Accounting-Request-Stop if RADIUS accounting is enabled. |

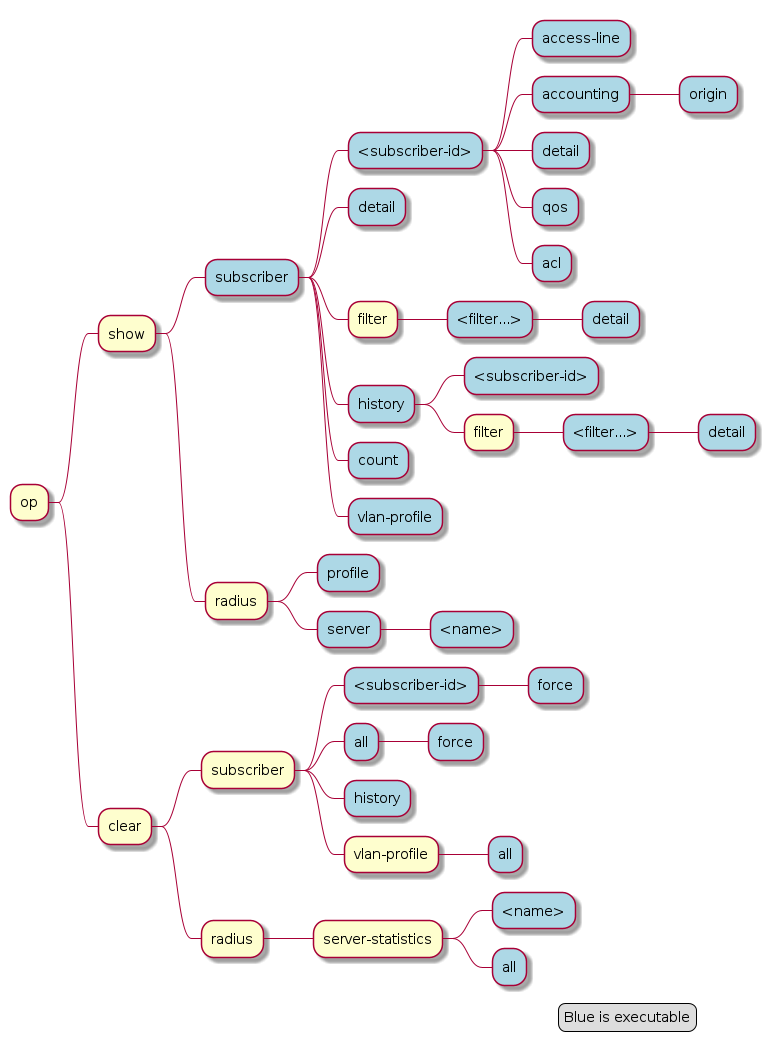

For each subscriber a set of commands is available showing detailed information.
supervisor@leaf1: op> show subscriber 72339069014638594
<cr>
access-line Subscriber access line information
accounting Subscriber accounting information
acl Subscriber ACL information (filter)
detail Detailed subscriber information
qos Subscriber QoS information
user@switch: op> show subscriber 72339069014638594 detail
Subscriber-Id: 72339069014638594
Type: PPPoE
State: ESTABLISHED
Created: Fri Sep 18 20:50:02 GMT +0000 2020
Interface: ifl-0/0/1
Outer VLAN: 128
Inner VLAN: 7
Client MAC: fe:08:e8:ea:1d:32
Server MAC: 7a:52:4a:01:00:01
IFL: ppp-0/0/1/72339069014638594
Username: 1122334455#123456789#0001@t-online.de
Agent-Remote-Id: DEU.DTAG.1337
Agent-Circuit-Id: 0.0.0.0/0.0.0.0 eth 1337
Access-Profile: access-profile1
AAA-Profile: aaa-profile1
Session-Timeout: 30000
Idle-Timeout: 120
IPv4:
Instance: default
Address: 198.51.100.116/255.255.255.255
Address Active: True
Primary DNS: 198.51.100.213
Secondary DNS: 198.51.100.54
IPv6:
Instance: default
RA Prefix: 2001:db8:0:400::/32
RA Prefix Active: True
Delegated Prefix (DHCPv6): 2001:db8:0:269::/56
Delegated Prefix Active: False
Primary DNS: 2001:db8:0:92::
Secondary DNS: 2001:db8:0:174::
Accounting:
Session-Id: 72339069014638594:1600462202
Start-Time: 2020-09-18T20:50:02.738306+0000
Interims Interval: 30 seconds
Subscriber Termination Codes
The following command shows the reasons why subscribers are terminated for the last 24 hours and up to 4000 subscribers.
supervisor@leaf1: op> show subscriber history Subscriber-Id Timestamp Terminate Code 72339069014638594 Fri Oct 16 20:17:33 GMT +0000 2020 Accounting-Request-On Wait 72339069014638595 Fri Oct 16 20:32:19 GMT +0000 2020 PPPoE LCP Terminate Request Received
Subscriber Count
To view a summary of PPPoE, L2TP, IPoE, and L2BSA subscribers in the Setup, Established, and Terminating state, use the "show subscriber count" command. This command provides information per interface and a total summary based on subscriber type.
The following example for subscriber count output displays the total number of subscribers on the system and categorizes them by state (Setup, Established, Terminating, and Standby) and by access type such as PPPoE, L2TP, and IPoE.
supervisor@rtbrick.net: op> show subscriber count
Total Setup Established Terminating Standby
Summary 10764 2203 0 8561 0
PPPoE 798 564 0 234 0
L2TP 257 0 0 257 0
IPoE 9709 1639 0 8070 0
L2BSA 0 0 0 0 0
Test 0 0 0 0 0
ifp-0/1/24 5702 1331 0 4371 0
PPPoE 668 500 0 168 0
L2TP 172 0 0 172 0
IPoE 4862 831 0 4031 0
L2BSA 0 0 0 0 0
Test 0 0 0 0 0
ifp-0/1/25 5062 872 0 4190 0
PPPoE 130 64 0 66 0
L2TP 85 0 0 85 0
IPoE 4847 808 0 4039 0
L2BSA 0 0 0 0 0
Test 0 0 0 0 0
Example output:
The command show subscriber count brief provides a filter to the existing subscriber count command, excluding lines with zero counts. This provides a clearer overview on systems with a large number of access interfaces. The output provides a summarized view of subscriber statistics, displaying totals and session states (Setup, Established, Terminating, and Standby) by access type and per interface.
supervisor@rtbrick.net: op> show subscriber count brief
Total Setup Established Terminating Standby
Summary 10790 1521 0 9269 0
PPPoE 803 548 0 255 0
L2TP 272 0 0 272 0
IPoE 9715 973 0 8742 0
ifp-0/1/24 5688 952 0 4736 0
PPPoE 653 472 0 181 0
L2TP 181 0 0 181 0
IPoE 4854 480 0 4374 0
ifp-0/1/25 5102 569 0 4533 0
PPPoE 150 76 0 74 0
L2TP 91 0 0 91 0
IPoE 4861 493 0 4368 0
Example for subscriber count for specified interface. The output displays subscriber statistics specifically for the selected interface, including total sessions and their states. It also provides access-type information.
supervisor@rtbrick.net: op> show subscriber count interface ifp-0/1/24
Total Setup Established Terminating Standby
ifp-0/1/24 5621 939 0 4682 0
PPPoE 614 434 0 180 0
L2TP 179 0 0 179 0
IPoE 4828 505 0 4323 0
L2BSA 0 0 0 0 0
Test 0 0 0 0 0
RADIUS
RADIUS Profile
The following command shows the status of all RADIUS profiles.
supervisor@leaf1: op> show radius profile
RADIUS Profile: radius-default
NAS-Identifier: BNG
NAS-Port-Type: Ethernet
Authentication:
Algorithm: ROUND-ROBIN
Server:
radius-server-1
radius-server-2
Accounting:
State: UP
Stop on Reject: True
Stop on Failure: True
Backup: True
Algorithm: ROUND-ROBIN
Server:
radius-server-1
radius-server-2
This meaning of the accounting state is explained in the table below.
| Code | State | Description |
|---|---|---|
0x00 |
DISABLED |
Change profile accounting state from DISABLED to ACTIVE if at least one server referenced is found with accounting enabled. |
0x01 |
ACTIVE |
Server referenced by RADIUS profile but no response received |
0x02 |
STARTING |
Send accounting-on and wait for response. |
0x05 |
UP |
Change profile accounting state to UP if at least one referenced accounting server is UP. |
The profile state becomes immediately ACTIVE if at least one of the referenced accounting servers can be found in RADIUS server table with accounting enabled. Otherwise the profile keeps DISABLED.
If RADIUS Accounting-On is enabled, the profile state becomes STARTING before UP. It is not permitted to send any accounting request start, interim or stop related to a profile in this state. It is also not permitted to send authentication requests if accounting-on-wait is configured in addition. The state becomes UP if at least one server in the accounting server list is in a state UP or higher (UNREACHABLE, DOWN, TESTING, DEAD).
A new profile added which references existing used RADIUS servers must not trigger a RADIUS Accounting-On request if at least one of the referenced servers is in a state of UP or higher.
RADIUS Server
The following command shows the status of all RADIUS servers.
supervisor@leaf1: op> show radius server RADIUS Server Address Authentication State Accounting State radius-server-1 198.51.100.64 ACTIVE UP radius-server-2 198.51.100.163 ACTIVE ACTIVE radius-server-3 198.51.100.104 ACTIVE ACTIVE

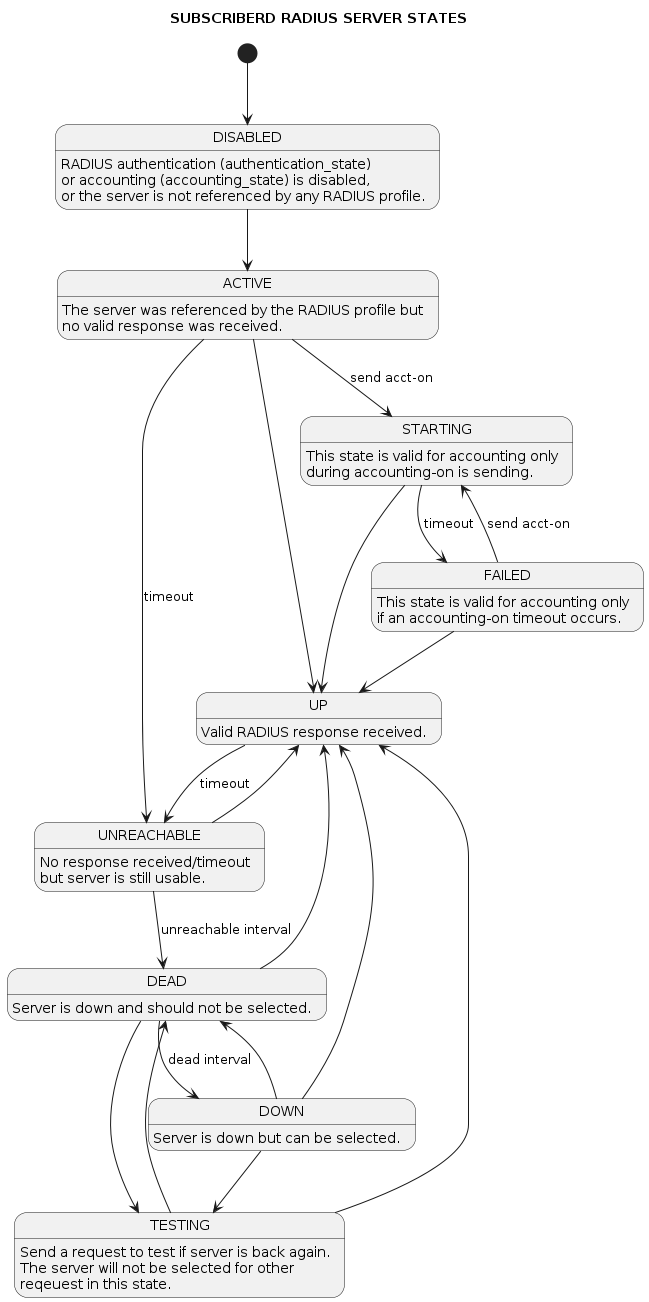

This meaning of those states is explained in the table and diagram below.
| Code | State | Description |
|---|---|---|
0x00 |
DISABLED |
RADIUS authentication (authentication state) or accounting (accounting state) is disabled or server not referenced by profile. |
0x01 |
ACTIVE |
Server referenced by RADIUS profile but no valid response received. |
0x02 |
STARTING |
This state is valid for accounting (accounting state) only during accounting-on is sending (wait for accounting-on response). |
0x03 |
STOPPING |
This state is valid for accounting (accounting state) only during accounting-off is sending (wait for accounting-off response). |
0x04 |
FAILED |
This state is valid for accounting (accounting state) only if accounting-on/off timeout occurs. |
0x05 |
UP |
Valid RADIUS response received |
0x06 |
UNREACHABLE |
No response received/timeout but server is still usable. |
0x07 |
DOWN |
Server is down but can be selected. |
0x08 |
TESTING |
Send a request to test if server is back again. The server will not be selected for another request in this state (use a single request to check if server is back again). |
0x09 |
DEAD |
Server is down and should not be selected. |
For each server dedicated detailed information are displayed with the following commands.
supervisor@leaf1: op> show radius server radius-server-1
RADIUS Server: radius-server-1
Address: 198.51.100.64
Source: 198.51.100.200
Rate: 600 PPS
Rate Tokens: 600
Dropped: 0
Authentication:
State: ACTIVE
State Changed: Fri Oct 16 20:17:27 GMT +0000 2020
Port: 1812
Retry: 3
Timeout: 5
Outstanding: 100
Statistics:
Request Sent: 0
Request Retry: 0
Request Timeout: 0
Accept Received: 0
Reject Received: 0
Dropped: 0
Accounting:
State: UP
State Changed: Fri Oct 16 20:18:27 GMT +0000 2020
Port: 1813
Retry: 10
Timeout: 30
Outstanding: 100
Statistics:
Request Sent: 1
Request Retry: 2
Request Timeout: 0
Response Received: 1
Dropped: 0
CoA:
Port: 3799
Statistics:
Request Received: 0
Dropped: 0
PPPoE

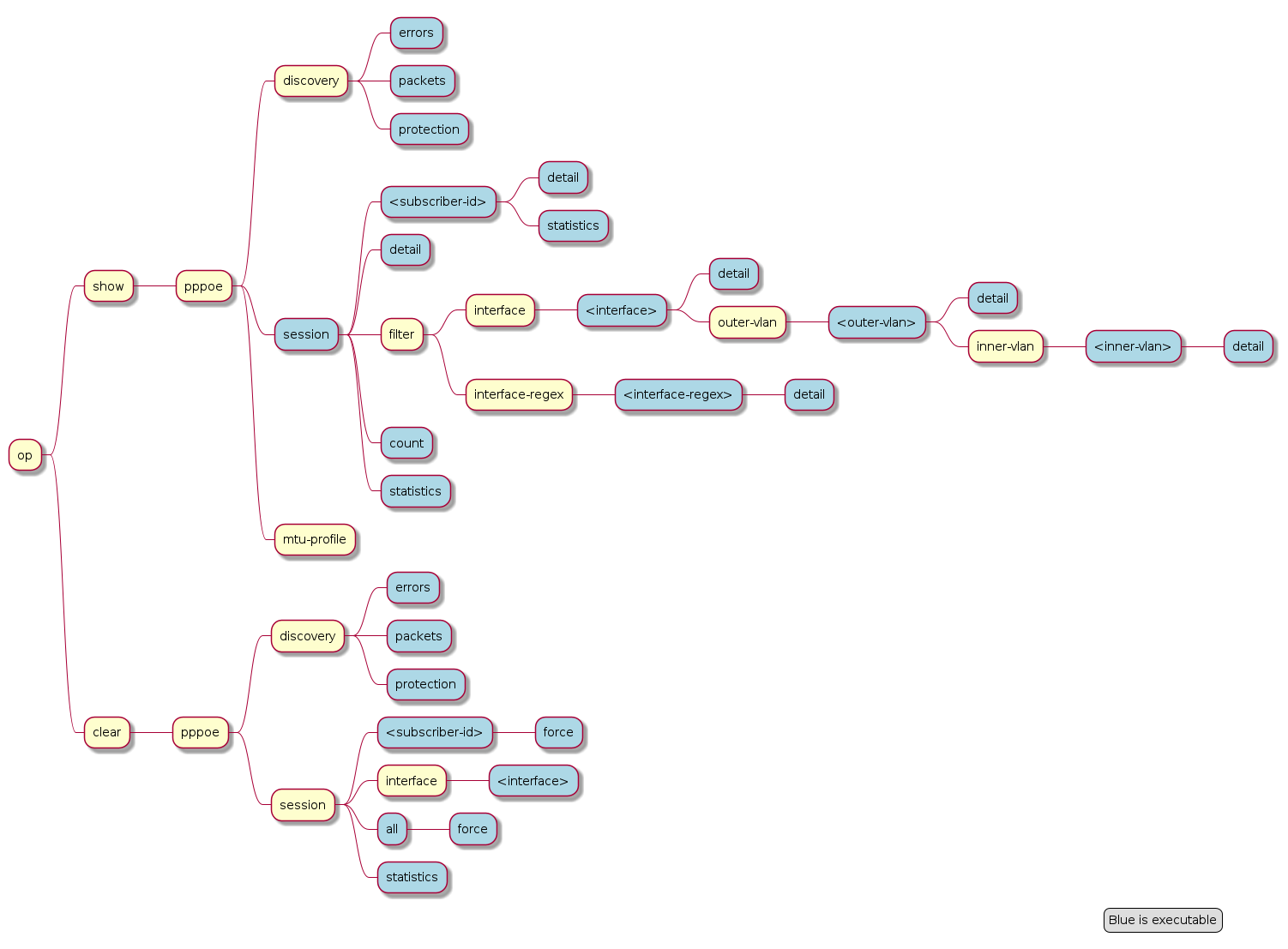

The following commands are applicable for PPPoE sessions only.
For PPPoE sessions the state should be ESTABLISHED if local terminated or TUNNELLED for L2TPv2 tunnelled sessions.
supervisor@rtbrick: op> show pppoe session Subscriber-Id Interface VLAN MAC State 72339069014638604 ifp-0/0/1 1:1 00:04:0e:00:00:01 ESTABLISHED 72339069014638601 ifp-0/0/1 1:2 00:04:0e:00:00:02 ESTABLISHED 72339069014638602 ifp-0/0/1 1:3 00:04:0e:00:00:03 ESTABLISHED 72339069014638603 ifp-0/0/3 2000:7 52:54:00:57:c8:29 TUNNELLED
Alternative use show pppoe session detail which shows further details like username, Agent-Remote-Id (aka Line-Id) or Agent-Circuit-Id if screen width is large enough to print all those information.
| State | Description |
|---|---|
|
PPP LCP setup. |
|
PPP authentication (PAP or CHAP). |
|
PPP IPCP (IPv4) and IP6CP (IPv6) setup. |
|
The PPPoE session becomes established if at least one NCP (IPCP or IP6CP) is established (state OPEN). |
|
This state indicates that a PPPoE session is tunnelled via L2TPv2. |
|
PPP session teardown. |
|
PPPoE session terminated. |
If PPPoE session remain in state TERMINATED, the subscriber state should be checked. Typically this happens if RADIUS Accounting-Request-Stop is still pending.
Further details per PPPoE session can be shown with the following commands.
supervisor@rtbrick: op> show pppoe session 72339069014638648 <cr> detail Detailed session information statistics Protocol statistics
The detail command shows the states of the session and all sub-protocols with extensive information and negotiated parameters.
user@switch: op> show pppoe session 72339069014638648 detail
Subscriber-Id: 72339069014638648
State: ESTABLISHED
Uptime: Tue Nov 17 11:46:43 GMT +0000 2020 (0:00:21.979775)
Interface: ifp-0/0/3
Outer VLAN: 10
Inner VLAN: 7
Client MAC: 52:54:00:57:c8:29
Server MAC: 7a:52:4a:c0:00:03
Session-Id: 55
Host-Unique: 00000001
Agent-Remote-Id: DEU.RTBRICK.1
Agent-Circuit-Id: 0.0.0.0/0.0.0.0 eth 1
Access-Profile: pppoe-dual
AAA-Profile: aaa-default
PPP LCP:
State: OPENED
Negotiated Protocols: CHAP, IPCP, IP6CP
Negotiated Parameters: MRU, AUTH, MAGIC
Magic Number: 1079931229 Peer: 3432759752
MRU: 1492 Peer: 1492
MTU: 1492 Profile: __default_pppoe__
Echo Interval: 30 seconds
CHAP Authentication:
State: COMPLETED
Username: user1@rtbrick.com
PPP IPCP:
State: OPENED
Instance: default
IP Address: 198.51.100.200 Peer: 198.51.100.72
Primary DNS: 198.51.100.88
Secondary DNS: 198.51.100.54
PPP IP6CP:
State: OPENED
Instance: default
Interface Identifier: c5f6:1dbd:8cc1:bea9
Peer Interface Identifier: 5054:00ff:fe57:c829
IPv6:
RA Interval: 60 seconds
RA Prefix: 2001:db8:0:246::/32
Delegated Prefix (DHCPv6): 2001:db8:0:9::/32 Assigned: True
Primary DNS: 2001:db8:0:114::
Secondary DNS: 2001:db8:0:115::
Control Traffic Statistics:
Ingress: 15 packets 1059 bytes
Egress: 16 packets 1475 bytes
Session statistics are available global and per session.
supervisor@rtbrick: op> show pppoe session statistics supervisor@rtbrick: op> show pppoe session 72339069014638601 statistics
The PPPoE discovery statistics are helpful if session setup fails in initial PPPoE tunnel setup before actual PPP negotiation is starting.
supervisor@rtbrick: op> show pppoe discovery packets Packet Received Sent PADI 17 0 PADO 0 17 PADR 17 0 PADS 0 17 PADT 1 13 supervisor@rtbrick: op> show pppoe discovery errors PADI Drop No Config : 0 PADI Drop Session Protection : 0 PADI Drop Session Limit : 0 PADI Drop Dup Session : 0 PADI Drop Interface Down : 0 PADR Drop No Config : 0 PADR Drop Wrong MAC : 0 PADR Drop Interface Down : 0 PADR Drop Session Limit : 0 PADR Drop Session Protection : 0 PADR Drop Bad Cookie : 0 PADR Drop Bad Session : 0 PADR Drop Dup Session : 0 PADR Drop No mapping Id : 0 PADT Drop No Session : 0 PADT Drop Wrong MAC : 0 PADX Interface Get Failure : 0
If PPPoE session protection is enabled in access configuration profile, short lived or failed sessions will be logged in the PPPoE session protection table (local.pppoe.session.protection).
Every session not established for at least 60 seconds per default is considered as failed or short lived session. This will block new sessions on this IFP and VLAN’s for one second per default which increase exponential with any further failed session until the max time of per default 300 seconds is reached. The interval is reset after 900 seconds without failed sessions.
The PPPoE session protection table include also last subscriber-id and terminate code which indicates the reason for session failures.
supervisor@rtbrick: op> show pppoe discovery protection Interface VLAN Status Attempts Last Terminate Code ifp-0/0/1 1:1 OK 1 PPPoE LCP Terminate Request Received ifp-0/0/1 1:2 OK 1 PPPoE LCP Terminate Request Received ifp-0/0/1 1:3 OK 1 PPPoE LCP Terminate Request Received
If status OK indicates that new session are accepted where BLOCKED means that sessions will be rejected.
The following example shows the aggregated PPPoE session control-plane statistics across all sessions on the device. The output provides counters for PPP negotiation for LCP, IPCP, and IP6CP.
supervisor@rtbrick: op> show pppoe session statistics LCP configure-request received : 10 LCP configure-ack received : 10 LCP terminate-request received : 5 LCP terminate-ack received : 5 LCP echo-reply received : 5 LCP configure-request sent : 10 LCP configure-ack sent : 10 LCP terminate-request sent : 5 LCP terminate-ack sent : 5 LCP echo-request sent : 5 LCP MRU negotiation successful : 10 LCP magic number negotiation successful : 10 IPCP configure-request received : 20 IPCP configure-ack received : 10 IPCP configure-request sent : 10 IPCP configure-ack sent : 10 IPCP configure-nak sent : 10 IP6CP configure-request received : 10 IP6CP configure-ack received : 10 IP6CP configure-request sent : 10 IP6CP configure-ack sent : 10 PAP authentication-request received : 10 PAP authentication-ack sent : 10 ICMPv6 router-solicitation received : 10 ICMPv6 router-advertisement sent : 10 DHCPv6 solicit received : 10 DHCPv6 reply sent : 10
The following example shows the PPPoE session statistics for a specific session. It displays protocol message statistics for an individual PPPoE session identified by the session ID.
supervisor@rtbrick: op> show pppoe session 72339069014638599 statistics LCP configure-request received : 1 LCP configure-ack received : 1 LCP echo-reply received : 1 LCP configure-request sent : 1 LCP configure-ack sent : 1 LCP echo-request sent : 1 LCP MRU negotiation successful : 1 LCP magic number negotiation successful : 1 IPCP configure-request received : 2 IPCP configure-ack received : 1 IPCP configure-request sent : 1 IPCP configure-ack sent : 1 IPCP configure-nak sent : 1 IP6CP configure-request received : 1 IP6CP configure-ack received : 1 IP6CP configure-request sent : 1 IP6CP configure-ack sent : 1 PAP authentication-request received : 1 PAP authentication-ack sent : 1 ICMPv6 router-solicitation received : 1 ICMPv6 router-advertisement sent : 1 DHCPv6 solicit received : 1 DHCPv6 reply sent : 1
L2TP

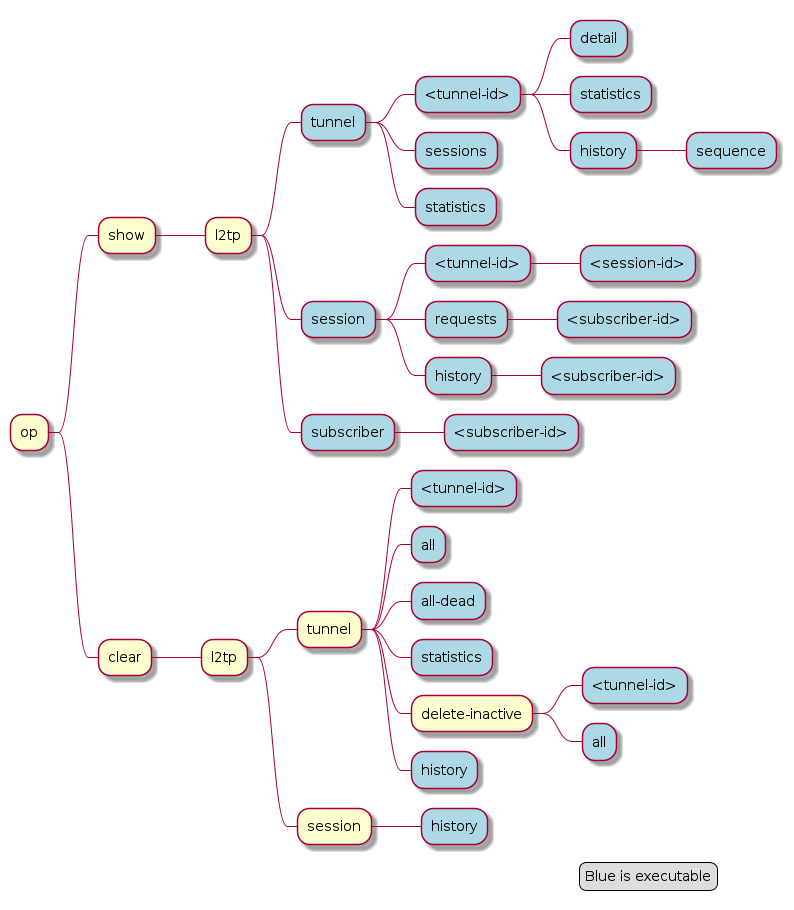

The following commands are applicable for L2TP only.
For L2TPv2 tunnelled PPPoE sessions the global unique subscriber-id can be used to get information about the L2TP session.
supervisor@rtbrick: op> show l2tp subscriber 72339069014638621
Subscriber-Id: 72339069014638621
State: ESTABLISHED
Local TID: 45880
Local SID: 39503
Peer TID: 1
Peer SID: 1
Call Serial Number: 10
TX Speed: 10007000 bps
RX Speed: 1007000 bps
CSUN: disabled
The following command gives a good overview over the corresponding tunnels.
supervisor@leaf1: op> show l2tp tunnel sessions Role Local TID Peer TID State Preference Sessions Established Peer Name LAC 2022 1 ESTABLISHED 10000 1 1 LNS3 LAC 3274 1 ESTABLISHED 10000 1 1 LNS8 LAC 14690 1 ESTABLISHED 10000 1 1 LNS6 LAC 29489 1 ESTABLISHED 10000 1 1 LNS9 LAC 33323 1 ESTABLISHED 10000 1 1 LNS4 LAC 35657 1 ESTABLISHED 10000 1 1 LNS10 LAC 37975 1 ESTABLISHED 10000 1 1 LNS1 LAC 45880 1 ESTABLISHED 10000 1 1 LNS7 LAC 46559 1 ESTABLISHED 10000 1 1 LNS2 LAC 58154 1 ESTABLISHED 10000 1 1 LNS5
Detailed information per tunnel are available via show l2tp tunnel <TID> detail.
L2TP tunnel statistics are available global and per tunnel.
supervisor@leaf1: op> show l2tp tunnel statistics supervisor@leaf1: op> show l2tp tunnel 37975 statistics
The following output provides a high-level summary of L2TP control plane activity, showing the total number of tunnels and sessions successfully established on the device.
supervisor@rtbrick: op> show l2tp tunnel statistics Tunnel created : 3 Tunnel initialized : 3 Session created : 5 SCCRQ sent : 3 SCCCN sent : 3 ICRQ sent : 5 ICCN sent : 5 SCCRP received : 3 ZLB received : 5 ICRP received : 5
This following output provides the view of signaling activity specifically for L2TP tunnel '65244', detailing the control messages used to maintain that specific connection.
supervisor@rtbrick: op> show l2tp tunnel 65244 statistics Session created : 3 SCCRQ sent : 1 SCCCN sent : 1 ICRQ sent : 3 ICCN sent : 3 SCCRP received : 1 ZLB received : 1 ICRP received : 3
L2TP Result and Disconnect Codes
The received result (RFC2661) and disconnect (RFC3145) code and message from CDN and StopCCN will be stored similar to the subscriber terminate history table for 24 hours and up to 1000 records.
supervisor@leaf1: op> show l2tp tunnel history
Sequence Local TID Peer TID Timestamp Terminate Code
1 34209 0 Wed Jul 28 13:02:35 GMT +0000 2021 Admin Request
2 39860 1 Wed Jul 28 13:02:35 GMT +0000 2021 Admin Request
3 39860 2 Wed Jul 28 13:02:54 GMT +0000 2021 Admin Request
4 39860 3 Wed Jul 28 13:04:29 GMT +0000 2021 StopCCN Received (Requester is being shut down)
5 39860 1 Wed Jul 28 13:06:19 GMT +0000 2021 StopCCN Received (Requester is being shut down)
supervisor@leaf1: op> show l2tp tunnel history 4
Local TID: 39860 Peer TID: 3
Terminate Code: StopCCN Received
Timestamp: Wed Jul 28 13:04:29 GMT +0000 2021
Local Address: 198.51.100.102
Peer Address: 198.51.100.133
Peer Name: LNS1
Tunnel-Client-Auth-ID: BNG
Tunnel-Server-Auth-ID: LNS1
Result Code: Requester is being shut down
supervisor@leaf1: op> show l2tp session history
Subscriber-Id Local TID Local SID Terminate Code
72339069014638614 39860 5597 Clear Session
72339069014638615 39860 5208 Clear Session
72339069014638623 39860 29626 Clear Session
72339069014638624 39860 42480 L2TP Tunnel Down
72339069014638625 39860 34417 L2TP Tunnel Down
72339069014638626 39860 20229 L2TP Tunnel Down
The show subscriber history <subscriber-id> command will also return L2TP details if found for the corresponding subscriber.
supervisor@leaf1: op> show subscriber history 72339069014638703
Subscriber-Id: 72339069014638703
Terminate Code: L2TP CDN Request
Timestamp: Wed Jul 28 13:06:18 GMT +0000 2021
Interface: ifl-0/0/1
Outer VLAN: 1000
Inner VLAN: 2002
Client MAC: 02:00:00:00:00:04
Username: blaster@l2tp.de
Agent-Remote-Id: DEU.RTBRICK.2
Agent-Circuit-Id: 0.0.0.0/0.0.0.0 eth 0:2
Accounting-Session-Id: 72339069014638703:1627477569
L2TP Disconnect Cause:
Code: Normal disconnection (LCP terminate-request)
Protocol: 0
Direction: Peer
Message: N/A
The following output shows information related to L2TP tunnel and session establishment. The output includes statistics for tunnel creation, initialization, and control messages exchanged during the L2TP control-plane signaling process.
supervisor@rtbrick: op> show l2tp tunnel statistics Tunnel created : 3 Tunnel initialized : 3 Session created : 5 SCCRQ sent : 3 SCCCN sent : 3 ICRQ sent : 5 ICCN sent : 5 SCCRP received : 3 ZLB received : 5 ICRP received : 5
IPoE

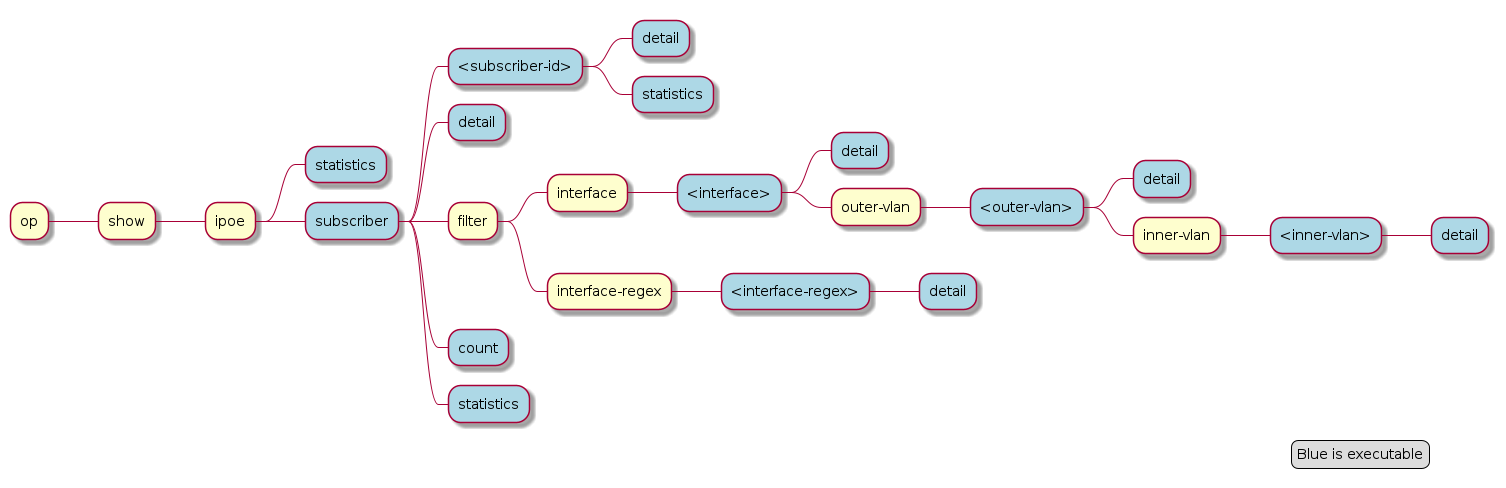

The following commands are applicable for IPoE subscribers only.
supervisor@leaf1: op> show ipoe subscriber detail Subscriber-Id Interface VLAN MAC State DHCPv4 DHCPv6 216454257090494465 ifl-0/0/1 8:1 02:00:00:00:00:01 ESTABLISHED Bound Bound 216454257090494466 ifl-0/0/1 8:2 02:00:00:00:00:02 ESTABLISHED Bound Bound 216454257090494467 ifl-0/0/1 8:3 02:00:00:00:00:03 ESTABLISHED Bound Bound 216454257090494468 ifl-0/0/1 8:4 02:00:00:00:00:04 ESTABLISHED Bound Bound
Further details per subscriber can be shown with the following command.
supervisor@leaf1: op> show ipoe subscriber 216454257090494465 detail
Subscriber-Id: 216454257090494465
State: ESTABLISHED
Uptime: Mon Jun 14 15:46:15 GMT +0000 2021 (0:02:19.421591)
Interface: ifl-0/0/1
Outer VLAN: 8
Inner VLAN: 1
Client MAC: 02:00:00:00:00:01
Gateway Interface: lo-0/0/0/1
Gateway Instance: default
Gateway IPv4: 198.51.100.200/255.255.255.255
Gateway MAC: 7a:52:4a:c0:00:01
Agent-Remote-Id: DEU.RTBRICK.1
Agent-Circuit-Id: 0.0.0.0/0.0.0.0 eth 0:1
DHCPv4:
Mode: Server
State: Bound
Address: 198.51.100.202/255.255.255.255
Lease Created: Mon Jun 14 15:46:15 GMT +0000 2021 (0:02:19.427443)
Lease Time: 300 seconds
Lease Expire: 161 seconds
DHCPv6:
Mode: Server
State: Bound
Client DUID: 00030001020000000001
Server DUID: 0003001b78524afffec00001
IA_NA:
Address: 2001:db8:0:96
IAID: 1181407340
Active: True
IA_PD:
Prefix: 2001:db8:0:333/32
IAID: 4095128883
Active: True
Lease Created: Mon Jun 14 15:46:15 GMT +0000 2021 (0:02:19.428676)
Lease Time (Lifetime): 14400 seconds
Lease Expire: 14261 seconds
Preferred Lifetime: 1800 seconds
Local Address Pools
| Rather than using recommended IP addresses for technical documents, the document shows actual IP pool ranges. |
The usage of local address pools can be monitored using the show subscriber pool commands as shown below.
supervisor@switch: op> show subscriber pool summary
Pool Name AFI Usage Range
pool-A IPv4 256/256 10.0.1.0 - 10.0.1.255
pool-B IPv4 2/256 10.0.2.0 - 10.0.2.255
pool-C IPv4 0/256 10.0.3.0 - 10.0.3.255
pool-D IPv4 0/256 10.0.4.0 - 10.0.4.255
supervisor@switch: op> show subscriber pool ipv4 pool-A
Pool Name: pool-A
AFI: IPv4
Usage: 256/256
Range: 10.0.1.0 - 10.0.1.255
Next: pool-B
supervisor@switch: op> show subscriber pool ipv4 pool-B
Pool Name: pool-B
AFI: IPv4
Usage: 2/256
Range: 10.0.2.0 - 10.0.2.255
Next: pool-C
supervisor@switch: op> show subscriber pool ipv4 pool-B allocation
Subscriber-Id Timestamp Address/Prefix
72339069014638598 Wed Sep 15 09:02:15 GMT +0000 2021 10.0.2.0
72339069014638602 Wed Sep 15 09:02:15 GMT +0000 2021 10.0.2.1
