Platform Overview

RBFS allows customers to select their preferred hardware platforms. This document provides information about RBFS-supported hardware platforms and the features available on each platform. It also includes information on firmware versions, the feature support matrix, and resource limits. This guide helps you understand the various supported platforms and their capabilities and help you evaluate and choose the right platform for your needs.

The RBFS Software runs as an LXC container on the RtBrick Host system, deployed on bare-metal switches. The switch can function independently as standalone unit leveraging all functionalities into a single platform or can be combined into a leaf-spine architecture for scalable deployments. The software supports Zero-Touch Provisioning (ZTP) installation and provides REST-based APIs for configurations and operations.

The guide is organized into the following sections:

  • Platform Overview: A high-level summary of the platforms.

  • Platform Hardware Information: Detailed specifications of the hardware, including CPU, ASIC, Form Factors, memory, storage, and network interfaces.

  • Firmware Versions: Information on supported firmware versions and their compatibility with RBFS.

  • Feature Support Matrix: Information about RBFS features supported on various platforms and for various roles.

  • Resource Limits/Feature Support: Details on resource allocation, such as maximum routes and interfaces.

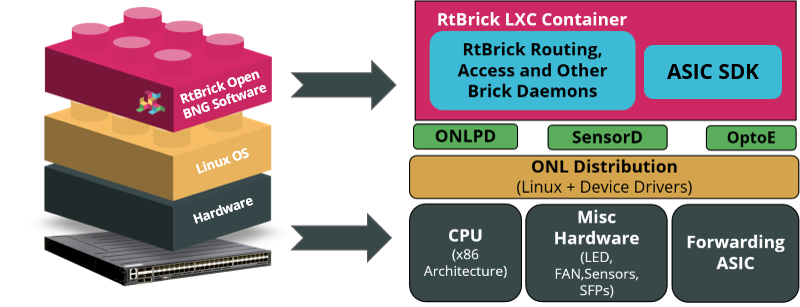

The following image shows a high-level overview of the platform architecture.

platform overview
Figure 1. Platform Overview

Platform hardware consists of forwarding ASICs and an RtBrick Host operating system. A RBFS container that resides on top of this software includes all necessary packages to deliver access and routing protocols.

Supported Platforms

RtBrick’s software has been validated on the following hardware platforms.

Hardware Platform Switch ASIC Role

Edgecore CSR440 (AS7535-28XB)

Q2A

Multiservice Edge

UfiSpace S9510-28DC

Q2A

Multiservice Edge

Edgecore AGR420 (AS7946-74XKSB)

Q2C

Access Leaf, Multiservice Edge

UfiSpace S9600-72XC

Q2C

Access Leaf, Multiservice Edge

Edgecore AGR400 (AS7946-30XB)

Q2C

Spine

UfiSpace S9600-32X

Q2C

Spine

UfiSpace S9600-102XC

Q2C

Access Leaf, Multiservice Edge

UfiSpace S9500-22XST

QAX

L2 Wholesale (L2BSA)

For a list of features and sub-features supported by each platform, see Feature Support Matrix.

End-of-Life Policy

RtBrick periodically introduces software support for new hardware platforms and use cases. Likewise, support for older software is discontinued to ensure that RtBrick can provide appropriate attention to software critical to drive business functions. The End-of-Life Policy page details the platforms that are no longer supported or have limited support from RtBrick.

Guidelines and Limitations

QAX-based Platforms

  • An additional restriction applies to ports belonging to a port group on QAX-based platforms. For more information, see section Guidelines and Limitations of the Interfaces User Guide.

  • MPLS forwarding is not supported on double-tagged interfaces. It is supported only on untagged and single-tagged interfaces.

Brick Daemon (BD)

RBFS runs multiple Brick Daemons (BD). Every application that runs within RBFS is fundamentally a brick daemon. For example, forwarding daemon (fibd), configuration daemon (confd), BGP (bgp.iod or bgp.appd), or interface management daemon (ifmd).

Brick Daemon (BD) Restartability

If a brick daemon fails, RBFS will restart it automatically. All microservices can restart automatically for an unlimited number of times. It improves system resilience in the event of recoverable failures. If the automatic restart does not succeed, you can use the Ubuntu system control to start a daemon.

For more information about troubleshooting the Brick Daemons, see section "2.2. Brick Daemons" of the RBFS NOC Troubleshooting Guide.

Limited Core Files to Save Disk Space

RBFS can prevent disk space exhaustion caused by repeated process crashes. Each process is allowed to retain up to three core files. When a new core file is generated, the oldest file will be automatically deleted. It improves disk space management while retaining recent crash data for debugging.

Setting Up System Parameters

You can configure basic host system parameters such as 'element name' and 'pod name' using the set system host command.

Syntax:

set system host <attribute> <value>

Attribute Description

element-name <element-name>

Specify the name of the element (container). A pod can contain a group of elements.

pod-name <pod-name>

Specifies the name of the Pod. Pod stands for point (zone) of deployment.

nameserver <nameserver>

Specify the IP address of the DNS server. It is allowed to configure a maximum of three servers.

role

Specify the role of the element. Roles include Spine, Access Leaf, Border Leaf, and so on.
The hostname is defined in the DHCP server. The maximum length of the hostname is restricted to 64 characters.

Example: System Parameters Configuration

supervisor@rtbrick>LEAF01: op> show config system host
{
  "rtbrick-config:host": {
    "element-name": "ufi10.q2c.u9.r4.nbg.rtbrick.net",
    "pod-name": "nbg4"
  }
}

CPU Watchdog Timer Utility for Hardware Platforms

The CPU watchdog timer utility is located in BMC and helps to detect any CPU failure. It also enables the CPU to recover from faults. By default, Watchdog Timer functionality is enabled, and it does not require any configuration from users. However, you can configure it to change the default settings.

Enable CPU Watchdog Timer in Hardware

Use the following command to enable watchdog timer on the hardware.

Syntax:

set system platform-management watchdog CPU <attribute> <value>

Attribute Description

action

Specifies the possible timeout actions:

  • hard-reset: A reset will take place based on the configured settings.

  • no-action: No action will be taken.

  • power-cycle: The watchdog timer will power cycle the device.

  • shutdown: The device will shut down per the configured setting.

Default value: power-cycle.

interval

Specifies the watchdog timer interval in seconds. Default value: 1800 seconds.

Example: Enable CPU Watchdog Timer

supervisor@rtbrick>LEAF01: op> show config system platform-management watchdog
{
    "rtbrick-config:watchdog": [
      {
        "type": "CPU",
        "action": "hard-reset",
        "interval": 3600
      }
    ]
  }

You can use the ipmitool utility to view the status of the CPU watchdog timer.

Log into the RtBrick Host and enter the command as shown below to validate CPU watchdog timer functionality.

supervisor@onl>rtbrick:~ $ sudo ipmitool mc watchdog get
Watchdog Timer Use:     OS Load (0x43)
Watchdog Timer Is:      Started/Running
Watchdog Timer Actions: Power Cycle (0x03)
Pre-timeout interval:   0 seconds
Timer Expiration Flags: 0x00
Initial Countdown:      1800 sec
Present Countdown:      1795 sec

Displaying Platform Information

To display platform information, use the show platform command, as shown in the example below.

supervisor@rtbrick>LEAF01: op> show platform
x86_64-ufispace_s9600_72xc-r0
  Role                 : multiservice-edge
  Platform             : q2c(BCM88820_A1)
  External Processor   : OP2(model: X register-value: 0x69A)
  Vendor               : Ufi Space
  Manufacturer         : Ufi Space
  Manufacture date     : 06/28/2021 10:51:29
  MAC address          : E8:C5:7A:8F:78:0D
  Part number          : S9600-72XC-RB6B
  Serial number        : WJ91B67T00009B3
  Product name         : S9600-72XC-R
  ONIE version         : 2022.02v04
  Label revision       : N/A
  Diag version         : 0.1.4
  Country code         : CN
  Device version       : 1

  • Information about external processors is displayed only for Q2C platforms and non-spine image roles. "N/A" displayed otherwise.

  • When using virtual platforms, the "show platform" CLI command does not provide any output.

Displaying RBFS Version Information

To display RBFS version information, use the show version command, as shown in the example below.

supervisor@rtbrick>LEAF01: op> show version
UUID        : 4e83e9a4-eb65-4ab0-a756-3ae3536dd6ad
Version     : 25.4.0-g6daily.20251126013758+Bdevelopment.C0313b7f9
Role        : multiservice-edge
Platform    : q2c
Format      : lxd
Build date  : 2025-11-26 01:37:58 UTC

To display detailed version information for RBFS along with library versions, use the show version detail command, as shown in the example below.

supervisor@rtbrick>LEAF01: op> show version detail
UUID        : 4e83e9a4-eb65-4ab0-a756-3ae3536dd6ad
Version     : 25.4.0-g6daily.20251126013758+Bdevelopment.C0313b7f9
Role        : multiservice-edge
Platform    : q2c
Format      : lxd
Build date  : 2025-11-26 01:37:58 UTC
Component                   Version                                                  Timestamp                Branch
alertmanager                ....0-g6daily.20251112122211+Bdevelopment.Cfd733666      2025-11-11 10:41:02      development
cligen                      0.1.0-g6daily.20251105111321+Bdevelopment.Cd8964728      2025-11-05 10:12:50      development
clixon                      4.3.1-g6daily.20251125140131+Bdevelopment.Cfc95084c      2025-11-13 03:40:34      development
ems-service-event           0.2.0-g6daily.20251104173513+Bdevelopment.Cd923496f      2025-10-28 09:33:01      development
etcd                        ....0-g6daily.20251105113559+Bdevelopment.C8987db4e      2025-10-28 09:32:14      development
fwd-plugin-bcm-q2c-s96...   4.2.0-g6daily.20251126010001+Bdevelopment.Cca388617      2025-11-26 00:40:28      development
hostconfd                   ....0-g6daily.20251121153022+Bdevelopment.C4b49f4ba      2025-11-21 08:26:47      development
hostnetconfd                0.7.0-g6daily.20251119153025+Bdevelopment.C0a756d06      2025-11-19 08:13:05      development
json-builder                0.1.0-g6daily.20251105112151+Bdevelopment.C7bf78ef6      2025-10-28 09:26:24      development
json-parser                 1.1.0-g6daily.20251104173526+Bdevelopment.C95257c44      2025-10-28 09:25:00      development
libbgp                      1.2.0-g6daily.20251126005928+Bdevelopment.Cb86c1199      2025-11-21 11:52:25      development
libcjson                    1.0.0-g6daily.20251104173453+Bdevelopment.C1bfaae2f      2025-10-28 09:24:36      development
libconfd                    1.1.1-g6daily.20251125140948+Bdevelopment.C6f603a5b      2025-11-04 12:37:53      development
libdict                     1.0.1-g6daily.20251104173534+Bdevelopment.C3698deb7      2025-10-28 09:28:14      development
libegrep                    1.1.0-g6daily.20251104173611+Bdevelopment.Cd8731a66      2025-10-28 09:28:29      development
libforwarding               4.2.0-g6daily.20251126005549+Bdevelopment.Cca388617      2025-11-26 00:40:28      development
libh2o                      2.2.6-g6daily.20251105112618+Bdevelopment.Ccabf806c      2025-10-28 09:28:27      development
libigmp                     1.1.0-g6daily.20251126005259+Bdevelopment.C63aa1a88      2025-10-28 09:24:52      development
libisis                     1.2.0-g6daily.20251126005938+Bdevelopment.Cae8678be      2025-11-26 00:38:37      development
liblacp                     0.2.0-g6daily.20251126010938+Bdevelopment.C6b68d457      2025-11-04 12:37:48      development
libldp                      0.3.0-g6daily.20251126005023+Bdevelopment.C01e28f15      2025-11-05 06:11:14      development
liblldp                     1.1.1-g6daily.20251126010933+Bdevelopment.C81ae1f31      2025-10-28 09:24:48      development
liblwip                     1.2.0-g6daily.20251105112452+Bdevelopment.C7c22f157      2025-11-04 08:51:45      development
libnat                      1.4.0-g6daily.20251126005258+Bdevelopment.C8f3e30ca      2025-11-05 06:15:54      development
libng-access                1.2.0-g6daily.20251126005302+Bdevelopment.C470442a6      2025-11-19 17:15:01      development
<...>

Configuring Platform Profiles

Network operators can determine ASIC scale profiles and features to meet their specific business requirements. Currently, the platform profile configuration is supported on the Multiservice Edge image on the Q2C and Q2A platforms. The profiles can be viewed using the show platform-profile command.

Guidelines & Limitations

  • The system only allows the configuration of the profiles and features it supports.

  • This system allows to configure any one of the supported profiles.

  • You can configure multiple features for one profile.

  • You can make changes to the features, such as removing or modifying them.

  • A system reboot is required for the changes to take effect.

Platform Profile Support

Platform Supported Profile Supported Features Default

Q2C Multiservice Edge

1q, 4q, nat_standalone, nat_1q, nat_4q

IPoE N:1, sFlow, and so on.

4q

Q2A Multiservice Edge

1q, 4q, nat_standalone, nat_1q, nat_4q

IPoE N:1, sFlow, access-multifield-classifier, and so on.

4q (ipoe-n-1)

To configure profile for a specific platform, use the command below.

Syntax:

set system platform profile <profile_name>

Attribute Description

<profile-name>

Specifies the profile that you want to activate. Supported platform profiles include 1q, 4q, nat_1q, nat_standalone, and nat_4q. The new platform profile will be activated only after a system reboot

feature <feature>

Specifies the feature that enabled along with the profile.

<profile_name>

Specifies the profile that you want to activate. Supported platform profiles include 1q, 4q, nat_1q, nat_standalone, and nat_4q. The new platform profile will be activated only after a system reboot. If no profile is configured, the system defaults to the profile 4q.

<feature>

Specifies the feature that is enabled along with the profile.

To enable support for 400G transceivers, you must specify 400Gx1 (one 400G port mode ) or 400Gx2 (two 400G ports mode) as the feature name.

ipoe mode

Choose the desired redundancy mode: standby-forwarding or standby-non-forwarding.

Example: Configuring 1q platform profile

set system platform
set system platform profile 1q
supervisor@rtbrick.net: cfg> show config  system platform
{
  "rtbrick-config:platform": {
    "profile": [
      {
        "profile_name": "1q"
      }
    ]
  }
}

Example: Enabling the feature ipoe-n-1 for the profile nat_1q

supervisor@switch: cfg> set system platform profile nat_1q feature ipoe-n-1
"rtbrick-config:system": {
      "platform": {
        "profile": [
          {
            "profile_name": "nat_1q"
          }
        ]
      }
    }

"rtbrick-config:system": {
      "platform": {
        "profile": [
          {
            "profile_name": "nat_1q",
            "feature": [
              "ipoe-n-1"
              ]
          }
        ]
      }
    }

Example: Enabling the redundancy mode for the profile nat_1q

supervisor@switch: cfg>set system platform profile nat_1q ipoe-mode standby-non-forwarding
platform": {
        "profile": [
          {
            "profile_name": "nat_1q",
            "feature": [
              "ipoe-n-1"
              ],
            "ipoe-mode": "standby-non-forwarding"
          }
        ]
      }

To view the profiles configured for a platform after reboot, use the show platform-profile command as shown in the example below

Example: Viewing Platform Profile on the Q2A Platform

supervisor@rtbrick>LEAF01: op>show platform-profile
Platform-profile: 4q
  Role: multiservice-edge
  MDB Profile: custom_q2a_scale_4q
    Counter Profile: multiservice_edge
  Features: -|ipoe-n-1|-|-
supervisor@rtbrick>LEAF01: op>show platform-profile
Platform-profile: nat_4q
  Address Translation Service: True
  Role: multiservice-edge
  MDB Profile: custom_q2a_scale_nat
    Counter Profile: multiservice_edge_nat_extend
  Features: -|ipoe-n-1|-|sflow

Example: Viewing Platform Profile on the Q2C Platform

supervisor@rtbrick>LEAF01: op> show platform-profile
Platform-profile: nat_4q
  External Processor Variant: OP2_M
  Address Translation Service: True
  Role: multiservice-edge
  MDB Profile: custom_rtb_multiservice_edge_nat
    Counter Profile: multiservice_edge_nat_extend
    Forwarding Routes on External Processor: False
    Ingress Accounting is External: False
    Egress Accounting is External: True

The following example configures the platform profile named 4q to enable the 400Gx1 feature, which activates support for one 400G transceiver on the system.

set system platform profile 4q feature 400Gx1
"rtbrick-config:system": {
      "platform": {
        "profile": [
          {
            "profile_name": "4q",
            "feature": [
              "400Gx1"
              ]
          }
        ]
      }
    }

For more information about the 400G ZR+ Optics, see the Support for 400G ZR+ Optics on UfiSpace S9510-28DC Platform section.

Port Configuration for 400G Optics

The table below provides a summary of the ports NIF for 400G ZR+ optics on the UfiSpace S9510-28DC platform in both modes (mode_1_400G and mode_2_400G).

400G ZR+ Optics Port Summary
Mode Resource Ports Port Type Speed Bandwidth

mode_1_400G

400G

1

NIF

400

400

100G

3

NIF

100

300

25G

4

NIF

25

100

10G

20

NIF

10

200

OAM

1

Internal

10

10

OLP

1

Internal

10

10

Eventor

1

Internal

10

10

ERP

1

Internal

10

10

KR Port

4

Internal

10

40

SAT Interface

1

Internal

100

100

mode_2_400G

400G

2

NIF

400

800

100G

2

NIF

100

200

OAM

1

Internal

10

10

OLP

1

Internal

10

10

Eventor

1

Internal

10

10

ERP

1

Internal

10

10

KR Port

4

Internal

10

40

SAT Interface

1

Internal

100

100
The mode_1_400G mode supports one 400G port and all twenty-eight ports can be used, whereas in the mode_2_400G mode, two 400G ports are supported and only four ports can be used.

The show interface physical command output below shows the ports that are availble for UfiSpace S9510-28DC platform in the mode_2_400G mode.

supervisor@rtbrick.net: op> show interface physical
Interface   Admin  Link  Oper  Damp    MAC Address        Speed  Duplex  Uptime
ifp-0/0/0   Up     Up    Up    stable  5c:07:58:78:8f:f9  400G   Full    Tue Dec 02 10:12:59 GMT +0000 2025
ifp-0/0/1   Up     Up    Up    stable  5c:07:58:78:90:01  400G   Full    Tue Dec 02 10:12:59 GMT +0000 2025
ifp-0/0/2   Up     Up    Up    stable  5c:07:58:78:90:09  100G   Full    Tue Dec 02 10:12:53 GMT +0000 2025
ifp-0/0/3   Up     Up    Up    stable  5c:07:58:78:90:0d  100G   Full    Tue Dec 02 10:12:53 GMT +0000 2025

Viewing Transceiver Details

The operational commands such as show transceiver, show interface physical, and show transceiver <interface> displays current status, high-level inventory, and detailed diagnostic information for the 400G optics and physical network interfaces on the UfiSpace S9510-28DC platform.

Viewing Transceiver Summary:

The show transceiver command provides a list of all installed transceivers across various interfaces on the platform, detailing their module type, name, connector type, power class, vendor, part number, and serial number.

supervisor@rtbrick.net: op> show transceiver
Interface      Module Type  Transceiver Name    Connector Type           PC         Vendor        Part Number        Serial Number     Material Number
ifp-0/0/0     QSFP-DD      ZR400-OFEC-16QAM    LC (Lucent Connector)    8(14.0W)   FLEXOPTIX     D.CO164HG.16.yTM   F824HMC           n/a
ifp-0/0/1      QSFP-DD      ZR400-OFEC-16QAM    LC (Lucent Connector)    8(14.0W)   FLEXOPTIX     D.CO164HG.16.yTM   F824GSF           n/a
ifp-0/0/2      QSFP28       100GBASE-LR4        LC (Lucent Connector)    5(4.0W)    LambdaGain    LL1S31B0A          L16C8M0034        T-UNIQSF40907039
ifp-0/0/3      QSFP28       100GBASE-LR4        LC (Lucent Connector)    5(4.0W)    LambdaGain    LL1S31B0A          L16D1O0019        T-UNIQSF40907039
ifp-0/0/4      SFP          10GBASE-CR Passive  Copper Pigtail           n/a        FS            SFPP-PC01          S2108213165-1     n/a

Viewing Physical Interfaces

The show interface physical command displays the status of all physical interfaces on the platform, including their administrative and operational state, link status, MAC address, configured speed and duplex, and uptime. This summary confirms that the interfaces (like the 400G and 100G ports) are currently operational and stable.

supervisor@rtbrick.net: op> show interface physical
Interface       Admin   Link    Oper    Damp      MAC Address          Speed  Duplex  Uptime
ifp-0/0/0       Up      Up      Up      stable    5c:07:58:78:8f:f9    400G   Full    Tue Nov 11 09:48:51 GMT +0000 2025
ifp-0/0/1       Up      Up      Up      stable    5c:07:58:78:90:01    400G   Full    Tue Nov 11 09:48:51 GMT +0000 2025
ifp-0/0/2       Up      Up      Up      stable    5c:07:58:78:90:09    100G   Full    Tue Nov 11 09:48:45 GMT +0000 2025
ifp-0/0/3       Up      Up      Up      stable    5c:07:58:78:90:0d    100G   Full    Tue Nov 11 09:48:45 GMT +0000 2025
cpu-0/0/200     Up      Up      Up      stable    5c:07:58:78:90:c0    100G   Full    Tue Nov 11 09:48:43 GMT +0000 2025
recycle-0/0/211 Up      Up      Up      stable    5c:07:58:78:90:cb    100G   Full    Tue Nov 11 09:48:43 GMT +0000 2025
recycle-0/0/212 Up      Up      Up      stable    5c:07:58:78:90:cc    100G   Full    Tue Nov 11 09:48:43 GMT +0000 2025
recycle-0/0/213 Up      Up      Up      stable    5c:07:58:78:90:cd    100G   Full    Tue Nov 11 09:48:43 GMT +0000 2025
recycle-0/0/214 Up      Up      Up      stable    5c:07:58:78:90:ce    100G   Full    Tue Nov 11 09:48:43 GMT +0000 2025
recycle-0/0/215 Up      Up      Up      stable    5c:07:58:78:90:cf    100G   Full    Tue Nov 11 09:48:43 GMT +0000 2025

Viewing 400G Transceiver Details

This example below provides detailed information for the 400G QSFP-DD optical transceiver named ZR400-OFEC-16QAM, including its vendor, part number, power class, connector type (LC), and capability to support a 600km link.

supervisor@rtbrick.net: op> show transceiver ifp-0/0/0
ifp-0/0/0
  Transceiver name: ZR400-OFEC-16QAM, Vendor name: FLEXOPTIX, Module type: QSFP-DD, Serial number: F824HMC
  Part number: D.CO164HG.16.yTM, Material number: n/a
  Power class: 8(14.0W), Power class mode: HIGH
  Connector type: LC (Lucent Connector), Link length support: 600km(smf), Wavelength: 1552.50 nm
  Capabilities: [Tx-Disable, Diagnostic Monitoring, Supply Voltage Monitoring, Temperature Monitoring, Transmitter Power Measurement]
  Manufactured date: Mon Jul 15 00:00:00 GMT +0000 2024
  Transceiver Diagnostic Monitoring
    Attribute        Value       High Alarm     High Warn   Low Alarm     Low Warn
    Temperature      45.9453 C   False          False       False         False
    Voltage          3.2724 V    False          False       False         False
  Transceiver Lane Diagnostic Monitoring
    Lane: 0
     Attribute       Value         High Alarm   High Warn   Low Alarm     Low Warn
      RxPower        -15.2290 dBm  False        False       False         False
      TxPower        -0.1060 dBm   False        False       False         False
      TxBiascurrent  53.1600 mA    False        False       False         False
