Configuring BGP-signaled L2VPN

Configuration Hierarchy

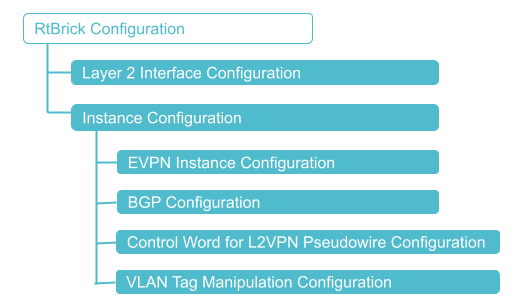

The diagram illustrates the BGP-signaled L2VPN configuration hierarchy. All BGP-signaled L2VPN configurations are done within an instance, such as the default instance or an EVPN service instance.

BGP-signaled L2VPN Configuration Hierarchy
Figure 1. BGP-signaled L2VPN Configuration Hierarchy

Configuration Syntax and Commands

The following sections describe the BGP-signaled L2VPN configuration syntax and commands.

Layer 2 Interface Configuration

BGP-signaled L2VPN supports the configuration of Layer 2 logical interfaces.

Syntax:

set interface <name> <attribute> <value>

Attribute Description

<name>

Specify the name of the interface. Example: ifp-0/0/1.

unit <unit-id>

Create a logical interface (also referred to as a sub-interface) under the physical interface

unit <unit-id> interface-type l2vpn-vpws

Specify the type of the L2VPN interface.

unit <unit-id> match-type port

Sets the "port" match-type for the L2VPN VPWS untagged interfaces. For tagged interfaces, "port" match-type is not supported. Ensure that there are no other tagged configurations for the interfaces when the port match-type is configured. When port matching is configured, it will match all traffic regardless of whether it is untagged, single-tagged, or double-tagged VLANs.

unit <unit-id> vlan <outer-vlan-id>

Outer VLAN ID.

unit <unit-id> vlan <inner-vlan-id>

Inner VLAN ID.

unit <unit-id> instance <instance>

Assign the logical interface to an instance.

The following example shows an untagged interface configuration along with "port" match-type for the L2VPN VPWS untagged interface.

set interface ifp-0/0/17 unit 0
set interface ifp-0/0/17 unit 0 interface-type l2vpn-vpws
set interface ifp-0/0/17 unit 0 match-type port
set interface ifp-0/0/17 unit 0 instance evpn-vpws-vrf1
commit

The following example shows a single-tagged interface configuration:

set interface ifp-0/0/17 unit 100
set interface ifp-0/0/17 unit 100 interface-type l2vpn-vpws
set interface ifp-0/0/17 unit 100 instance l2vpn_ce1
set interface ifp-0/0/17 unit 100 vlan 100
commit

The following example shows a double-tagged interface configuration:

set interface ifp-0/0/17 unit 200
set interface ifp-0/0/17 unit 200 interface-type l2vpn-vpws
set interface ifp-0/0/17 unit 200 instance l2vpn_ce2
set interface ifp-0/0/17 unit 200 vlan 200
set interface ifp-0/0/17 unit 200 inner-vlan 201
commit

EVPN Instance Configuration

An EVPN Instance (EVI) is a routing and forwarding instance of EVPN that covers all the participating PE routers in a VPN. EVI is configured per customer on the PE routers. Each EVI has a unique route distinguisher and one or more route targets.

Syntax:

set instance <name> <attribute> <value>

Attribute Description

<name>

A unique name for the EVPN routing instance.

address-family <afi>

Address family identifier (AFI). Supported value: l2vpn

address-family <afi> <safi>

Subsequent address family identifier (SAFI). Supported values: vpls-vpws

The SAFI vpls-vpws needs to be enabled on the VRF instance.

protocol

Specifies the routing protocol

route-distinguisher <as-number | ipv4-address:id>

The route distinguisher (RD) uniquely defines routes within an IPv4 network. PE routers use route distinguishers to identify which VPN a packet belongs to. Supported formats are <as-number:id> or <ipv4-address:id>.

ipv4-router-id <ipv4-router-id>

The router ID of the routing instance.

route-target ( import | export ) <rt-value>

Route targets (RT) are used to transfer routes between VPN instances. The RT identifies a subset of routes that should be imported to or exported from a particular VPN instance. You can configure an RT for importing or exporting routes or both.

In the following configuration, VRF instance AFI has been set to AFI: l2vpn and SAFI: vpls-vpws.

set instance l2vpn_ce1
set instance l2vpn_ce1 ipv4-router-id 182.1.6.4
set instance l2vpn_ce1 route-distinguisher 182.1.6.4:65006
set instance l2vpn_ce1 address-family l2vpn vpls-vpws
set instance l2vpn_ce1 address-family l2vpn vpls-vpws route-target import target:182.1.6.0:65006
set instance l2vpn_ce1 address-family l2vpn vpls-vpws route-target export target:182.1.6.0:65006
commit

BGP Configuration

BGP L2VPN VFT (Virtual Forwarding Table) Configuration

Syntax:

set instance <name> protocol bgp <attribute> <value>

Attribute Description

<name>

Name of the routing instance

address-family <afi>

Address family identifier (AFI). Supported value: l2vpn

address-family <afi> <safi>

Subsequent address family identifier (SAFI). Supported value: vpls-vpws

The SAFI vpls-vpws needs to be enabled on the VFT instance.

local-as <as-number>

The AS number in four-byte format. The numbers allowed are from 1 to 4294967295.

interface <name>

Interface that is bound to L2VPN

nterface <name> local-site-id <local-site-id>

Specify the local site ID that is used to establish an EVPN PW between two PEs

interface <name> remote-site-id <remote-site-id>

Specify the remote site ID that is used to establish an EVPN PW between two PEs

interface <name> label-base <value>

Specify the label base value.

The following example configures l2vpn_ce1 instance for BGP L2VPN.

set instance l2vpn_ce1 protocol bgp local-as 65006
set instance l2vpn_ce1 protocol bgp address-family l2vpn vpls-vpws
set instance l2vpn_ce1 protocol bgp address-family l2vpn vpls-vpws interface ifl-0/0/17/100
set instance l2vpn_ce1 protocol bgp address-family l2vpn vpls-vpws interface ifl-0/0/17/100 local-site-id 300
set instance l2vpn_ce1 protocol bgp address-family l2vpn vpls-vpws interface ifl-0/0/17/100 remote-site-id 301
set instance l2vpn_ce1 protocol bgp address-family l2vpn vpls-vpws interface ifl-0/0/17/100 label-base 150000
commit

BGP L2VPN Configuration

Configuring the BGP L2VPN Address Family

Syntax:

set instance <name> protocol bgp address-family l2vpn vpls

Attribute Description

<name>

Name of the routing instance

To configure BGP L2VPN VPLS on the default instance, enter the following command:

set instance default protocol bgp address-family l2vpn vpls
commit
Configuring Address Families for Peer Groups

Syntax:

set instance <instance-name> protocol bgp peer-group <pg-name> address-family <afi> <safi> <attribute> <value>

Attribute Description

<afi>

Address family identifier (AFI). Supported value: l2vpn.

<safi>

Subsequent address family identifier (SAFI). Supported value: vpls

extended-nexthop

Enable extended-next-hop encoding for BGP peer groups to allow the transfer of IPv4 prefixes over an IPv6 connection.

update-nexthop ( ipv4-address | ipv6-address ) <address>

BGP nexthop address for routes advertised to this peer group

To configure BGP L2VPN Peer Group on the default instance, enter the following command:

set instance default protocol bgp peer-group spine address-family l2vpn vpls
commit

Configuring Control Word for L2VPN Pseudowire

A control word can be inserted between the label stack and the MPLS payload. Control word is disabled by default.

Syntax:

set instance <name> protocol bgp address-family l2vpn vpls-vpws interface <interface> control-word enable

Attribute Description

<name>

Name of the routing instance.

<interface>

Name of the interface.

Example: Enter the following command to enable Control Word on the default instance.

set instance default protocol bgp peer-group spine address-family l2vpn vpls-vpws interface ifl-0/0/1/10 control-word enable
commit

Configuring VLAN Tag Manipulation

The following section describes the VLAN tag manipulation configuration syntax and commands.

Syntax:

set interface <interface-name> unit <unit id> [input-vlan-map | output-vlan-map] <attribute> <value>

Attribute Description

<name>

Specify the name of the interface.

unit <unit-id>

Specify the unit ID for the interface.

unit <unit-id> input-vlan-map

Ingress VLAN mapping.

unit <unit-id> output-vlan-map

Egress VLAN mapping

vlan-operation

Specify any of the VLAN operations supported: pop, pop-pop, pop-swap, push, push-push, swap, swap-push, and swap-swap.

vlan-encapsulation

Specify the encapsulation type for the VLAN operation. Supported only 802.1q.

vlan-id

Specify the outer VLAN for the VLAN operation specified.

inner-vlan-id

Specify the inner VLAN for the VLAN operation specified.

Example for VLAN operation 'push' configuration

supervisor@rtbrick.net: cfg> show config set interface ifp-0/1/4 unit 1000
set interface ifp-0/1/4 unit 1000
set interface ifp-0/1/4 unit 1000 interface-type l2vpn-vpws
set interface ifp-0/1/4 unit 1000 input-vlan-map vlan-operation push
set interface ifp-0/1/4 unit 1000 input-vlan-map vlan-id 1001
set interface ifp-0/1/4 unit 1000 instance l2vpn_ce1
set interface ifp-0/1/4 unit 1000 vlan 1000

Example: VLAN operation 'push' configuration output

supervisor@rtbrick.net: cfg> show config interface ifp-0/1/4 unit 1000
{
  "rtbrick-config:unit": [
    {
      "unit-id": 1000,
      "interface-type": "l2vpn-vpws",
      "input-vlan-map": {
        "vlan-operation": "push",
        "vlan-id": 1001
      },
      "instance": "l2vpn_ce1",
      "vlan": 1000
    }
  ]
}

Example for VLAN operation 'push-push' configuration

supervisor@rtbrick.net: cfg> show config set interface ifp-0/1/5 unit 2000
set interface ifp-0/1/5 unit 2000
set interface ifp-0/1/5 unit 2000 interface-type l2vpn-vpws
set interface ifp-0/1/5 unit 2000 input-vlan-map vlan-operation push-push
set interface ifp-0/1/5 unit 2000 input-vlan-map vlan-id 2000
set interface ifp-0/1/5 unit 2000 input-vlan-map inner-vlan-id 2001
set interface ifp-0/1/5 unit 2000 instance l2vpn_ce1
set interface ifp-0/1/5 unit 2000 vlan 2000
set interface ifp-0/1/5 unit 2000 inner-vlan 2

Example: VLAN operation 'push-push' configuration

supervisor@rtbrick.net: cfg> show config interface ifp-0/1/5 unit 2000
{
  "rtbrick-config:unit": [
    {
      "unit-id": 2000,
      "interface-type": "l2vpn-vpws",
      "input-vlan-map": {
        "vlan-operation": "push-push",
        "vlan-id": 2000,
        "inner-vlan-id": 2001
      },
      "instance": "l2vpn_ce1",
      "vlan": 2000,
      "inner-vlan": 2
    }
  ]
}
