HTTP Redirect Service Configuration

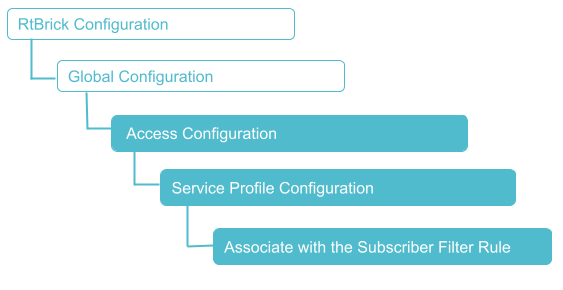

The configuration hierarchy for the HTTP Redirect service is illustrated in the diagram.

HTTP Redirect Configuration Hierarchy

Service Profile Configuration

Syntax:

set access service-profile profile-name <profile-name> <attribute> <value>

Attribute Description

<profile-name>

Service profile name.

<http-redirect>

HTTP redirect service configuration.

<url>

HTTP redirect target URL.

<acl>

Subscriber ACL (filter) configuration.

<ipv4-acl-in>

IPv4 upstream ACL (ingress from subscriber).

<ipv4-acl-out>

IPv4 downstream ACL (egress to subscriber).

<ipv6-acl-in>

IPv6 upstream ACL (ingress from subscriber).

<ipv6-acl-out>

IPv6 downstream ACL (egress to subscriber).

Example:

The following configuration specifies the HTTP redirect URL as: https://www.rtbrick.com. It associates the subscriber ACL with the profile. The ACL named 'redirect-acl-in' will determine which traffic is matched and redirected.

set access service-profile HTTP
set access service-profile HTTP http-redirect url https://www.rtbrick.com
set access service-profile HTTP acl ipv4-acl-in redirect-acl-in

The following example shows the HTTP redirect URL for the service profile.

supervisor@router: cfg> show config access service-profile HTTP
{
  "rtbrick-config:service-profile": [
    {
      "profile-name": "HTTP",
      "http-redirect": {
        "url": "https://www.rtbrick.com"
      },
      "acl": {
        "ipv4-acl-in": "redirect-acl-in"
      }
    }
  ]
}
